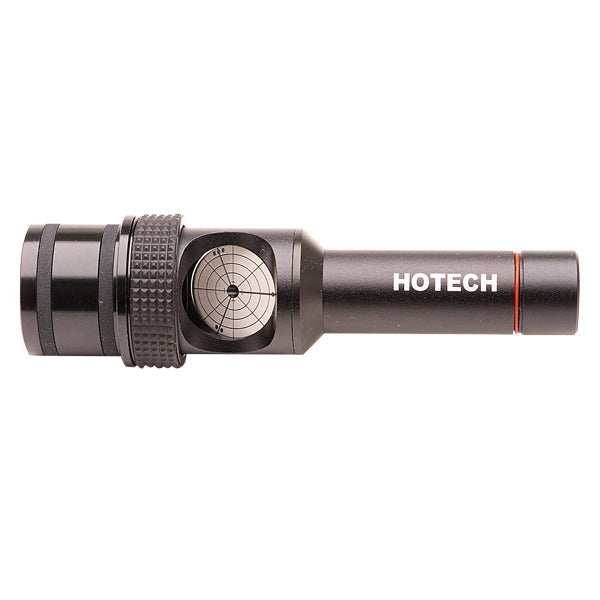

Hotech 1.25" SCA Crosshair Collimator w/ Self Centering Adapter and Illuminated Crosshairs

The Hotech 1.25" SCA Collimator is the ideal precision instrument to collimate your Newtonian and SCT telescope. Unit comes with one patented 1.25" SCA Laser Collimator w/ built-in Self-Centering Adapter, one CR123 battery, and user manuals for Newtonian, SCT, and Star collimation. The HoTech laser collimator separates itself from all other laser collimators with its innovative self-centering adapter technology (SCA). This mechanism allows precise and repeatable installation in all brands of 1.25" and 2" telescope focusers. All laser collimators in the current market have one fundamental problem, slop in the adapting mechanism between the laser collimator and the telescope focuser. This problem is clearly recognized and often discussed among astronomers but so far there has been no definite solution in the market. No matter how tightly the tolerances machined on the laser collimator or the focuser, a small gap is required to allow installation of the laser collimator. Once the laser collimator is inserted, the required gap becomes a problem. A laser collimator is secured with one or more thumbscrews or unified compression ring. Both methods introduce a very critical issue, namely an off-axis installment that instantly destroys the precision of your collimation instrument along the entire optical axis. The Hotech Self-Centering Adapter cleverly eliminates the slop by linearly compressing the built-in rubber rings. By doing this, the diameter of the rings expands to compensate the gap. Because all rings evenly expand radially in diameter from the compression, this automatically centers the laser collimator in the focuser draw tube. The SCA adapter accommodates various brands of adapting focusers which have slightly different manufacturing inside diameters so the Hotech laser collimator will be precisely centered for each installment. In summary, the Hotech SCA adapter serves three critical functions. First, its expansion rings accommodate almost all focuser's manufacturing tolerances. Second, it automatically centers the adapting laser. Third, it provides at least two evenly distributed circular contacts on the focuser's inner tube surface preventing the adapting laser from pivoting. Once the slop factor is taken away, you can quickly collimate your telescope in confidence to achieve perfect collimation every time.

About the Proprietary Laser Crosshairs

With Hotech's proprietary laser crosshair, user can zero-in the laser with ease during the final collimation on the secondary and the primary mirror. The crosshair model still exhibits a precision laser center dot, but with a touch of four extended laser lines from the center dot. The extension lines (crosshair) of the laser dot is the most intuitive way to guide the laser pointing for an accurate adjustment. During the secondary mirror collimation, a single dot laser projecting on the approximate center of the pre-loaded donut is difficult to identify if the laser dot is exactly on the center. The crosshair laser can easily help user to adjust the secondary mirror to point the laser on the exact center with the help of the crosshair line. During the final primary mirror collimation, the returning laser dot often hides into the laser exiting hole preventing user to identify if the returning laser is at exact center of the hole. Again, the crosshair will visually guide the user to center the laser dot with ease even when the center laser dot disappears into the exiting hole. It is a very effective and essential feature to the SCA Laser Collimator in obtaining at even higher degree of accuracy with ease. ""There is a tremendous amount of creativity and cleverness being displayed, all backed by a fervent devotion to making the sky more accessible and enjoyable for astronomy enthusiasts at all levels. It is truly inspiring." --Robert Naeye, Sky & Telescope Editor in Chief
